Water well drilling rig 12.19 m | 40Ttrailer-mountedrotaryhydraulic
Add to favorites
Compare this product
Characteristics
- Applications
- water well
- Mobility
- trailer-mounted
- Drilling unit
- rotary
- Other characteristics
- hydraulic
Description

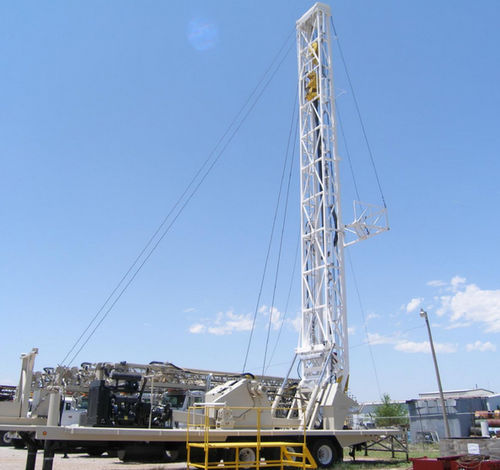

The GEFCO 40T, a proven performer around the world, is a
very simple design and easy to maintain. The triple drum draw
works rated with a max hook load of 116,000 Ibs. (52,727 kg)
and a single line pull of 22,000 Ibs. (9,979 kg) complète with a
hydromatic brake, can handle the load of the toughest wells.
With a 40 ft. (12.19 m) Kelly drum and 60 ft.(18.28 m) of
working space above the table, this drill is ready for large
water well and shallow oil and gas work anywhere in the world.
