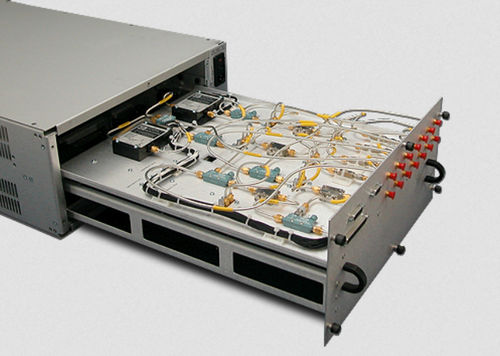

Microwave switching system 1257

RFGPIB19" rack-mount

Configurable Microwave/Optical Switching Platform The Racal Instruments™ 1257 switching system is a high-performance switching and control system available in 4U, 5U, or 6U rack-mountable packages. The unit draws upon our four decades of experience as a major automated test equipment (ATE) switching supplier to set a new standard in switching systems. Product Information Wide Range of Configurations The 1257 switching system provides significant control capabilities. Each system can control up to 240 TTL/CMOS and/or 2 A open-drain channels. This capability when paired with a spacious drawer size makes the 1257 ideal for housing and controlling the most demanding and space- intensive applications. Completely Assembled System Using world class manufacturing techniques, we will design and build a complete turnkey system based on customer requirements and specifications. Intuitive Front Panel Controls System start-up is simple and fast with the highly-intuitive, menu-driven interface consisting of a display, four soft-keys, and a knob. This powerful interface provides easy access to all switch states, system preferences, and non-volatile memory features of the 1257 switching system. Signal Path Control The 1257 is the only switching system available that comes configured with all signal paths defined with meaningful path names assigned. This simplifies software and front panel control, eliminating the need to reference system drawings. Non-Volatile Memory The non-volatile memory of the 1257 stores up to 100 complete system switch states and includes a separate automatic power- up state. This insures the system starts in a known state without user intervention.
