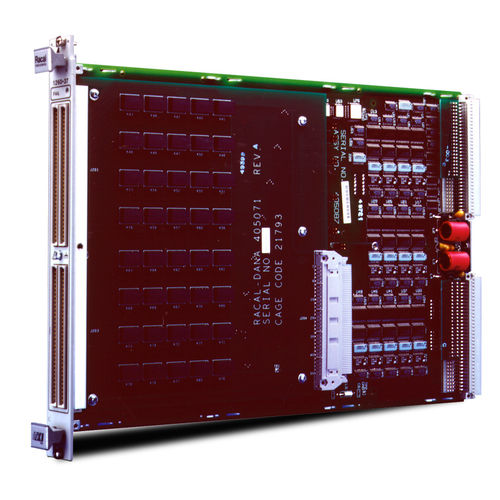

Board multiplexer 1260-37

for telecom applicationsmulti-channel

The Racal Instruments™ 1260-37 contains 40 Form C (SPDT) switches and eight 1x6 multiplexers. Product Information The multiplexers can be expanded using the on-board jumpers to four 1x12, two 1x24 or one 1x48 two-wire channels. The module’s unique combination of a signal multiplexer and independent switch channels provides for a significant portion of your switching needs in a single VXI slot and saves valuable space within your chassis. Relay coils are monitored to provide user selectable confidence checking which gives the user additional assurance of proper relay operation. The 1260-37 is controlled by the Racal Instruments™ Option 01 message-based interface, or the Option 01T message- based and register-based interface. Key Features • Ideal for general-purpose switching and multiplexing • Switches signals up to 1 A and 250 VDC or ACrms • Easily configured to meet user-defined network requirements • 40 SPDT and 8 1x6 MUX
