Portable chassis 1264 series

rack-mountcompact6 slots

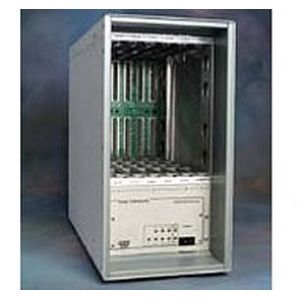

The Racal Instruments™ 1264C is a low-cost, 6-slot, C-size VXI chassis, designed and built with ISO-9001 certified Racal Instruments quality. This chassis benefits from our years of experience as a leading VXIbus chassis manufacturer, with performance features normally found only in high-end, 13-slot chassis Product Information The 1264C is ideal for portable applica- tions. Available rack ear and slide kits also make this chassis the natural choice for rack mount applications with limited space or budget. We recommend the sister model 1264C/D for rackmount applications requiring an integral cable tray (see sepa- rate data sheet). Installed modules are recessed three inches from the front of the chassis, forming a protective area for connectors and cable loops. An optional aluminum front door is available for mounting connectors, small receivers, keyboards, or displays. The 1264C uses a modular power sup- ply assembly with a wireless interconnect system. This provides 800 W of available power and 500 W of usable power. Its high dynamic current ensures crisp signals and accurate measurements from installed modules. The chassis includes status indi- cators for all seven power supply rails and fan operation. Ample cooling air is delivered to the mod- ules by means of a pressurized plenum system for even airflow distribution. The chassis includes our unique slot blockers, which are easily installed to prevent cooling air from diverting through unused slots. Key Features • Low cost • Lightweight and portable • 800 W of available power • System monitor included • Rack mount kits available • Ideal for limited-space, rack-mount applications
