Temperature data acquisition module PXIe-6943

multi-channelmulti-channeldigital I/O

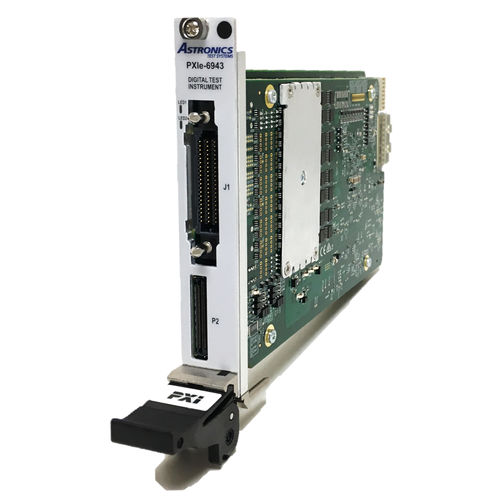

Conduct pattern-based digital tests incorporating the latest parallel, digital, serial, and bus protocols with the PXIe-6943 digital test instrument. This instrument is TPS-compatible with the legacy VXI digital test instrument from Astronics as well as other instrument vendors. Product Information The PXIe-6943 DTI for PXI Express provides the basis for a complete state-of-the-art digital solution at the subsystem level. The PXIe-6943 is the solution for both legacy digital replacement and new test stations to be built for digital test including aircraft/avionics, weapons systems, spacecraft, semiconductors, and medical devices. The PXIe-6943 Digital Test Instrument (DTI) provides 32 high-performance digital I/O channels in a space-saving single-wide PXI Express compatible module. The PXIe-6943 DTI operates at data rates up to 50 MHz with 1 ns edge placement, variable slew rates, and <3 ns channel-to-channel skew.
