Pico-ITX single-board computer IMX8P-IM-A

NXP i.MX8MArm® Cortex®-A53 Quad-coreM.2 Key E

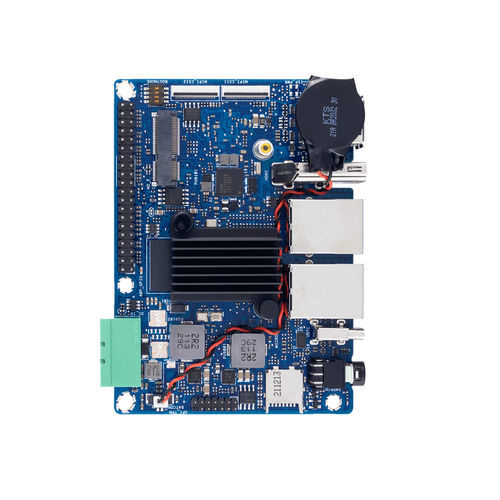

ASUS IMX8P-IM-A is a Pico-ITX Single Board Computer features NXP i.MX 8M quad core CPU based on the ARM Cortex-A53 architecture with up to 1.3 GHz and Cortex®-M4 coprocessor for high resolution graphic output. With its small form factor, IMX8P-IM-A offering HDMI and MIPI DSI as display outputs, 40pin-GPIO port, dual LAN as well as rich expandability like M.2 E key sockets and a Micro-SD Card connector. SPI TPM and I²C header are also available for modular upgradability. Thanks to the low–power consumption and the scalable performance of the SoC, IMX8P-IM-A can be served as the SBC inside the interface transition gateway for data aggregation, processing, and forwarding. ASUS IMX8P-IM-A is a cost-effective ARM-based SBC being ideal for embedded automation solutions and diverse smaller-scale IoT applications. As the world’s No.1 motherboard brand, ASUS offers MBs and SBCs with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
