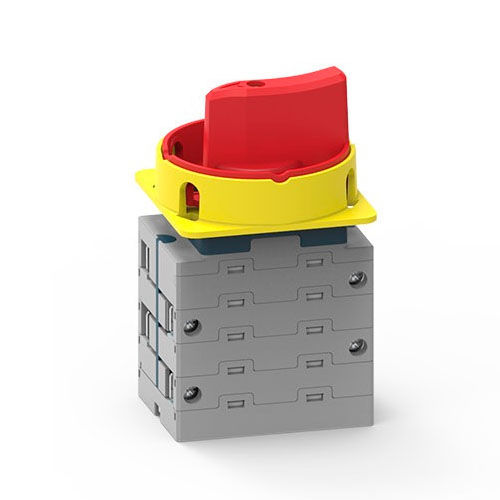

Rotary isolator switch EDS7PMRDCfusedmodular
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Electrical characteristics
- DC, fused
- Construction
- modular
- Applications
- for photovoltaic applications, industrial
- Other characteristics
- safety
- Certifications
- IEC
- Primary current
13 A, 20 A, 25 A, 40 A, 50 A
- VDC
1,500 V
Description
Choose our line of isolation switches that are properly disengaged power when toggled. With a patented arc-extinguishing chamber, we guarantee better solar DC safety.
Product Benefits
Non-polarity DC Isolator Switch
Modular design, available 2-10 levels.
Positive contact or reverse contact optional.
Single Hole Mounting, Panel Mounting, Distribution Board, Door Clutch or Enclosure available.
Dynamic sealing design and world class sealing materials guarantee an IP66 protection rate.
DC 1500V insulation voltage design, passed IEC/EN60947-3:2009+A1+A2, AS60947.3, UL508I,GB/T14048.3 test, Swith TUV, CE, CB, SAA, UL, CCC certifications.
