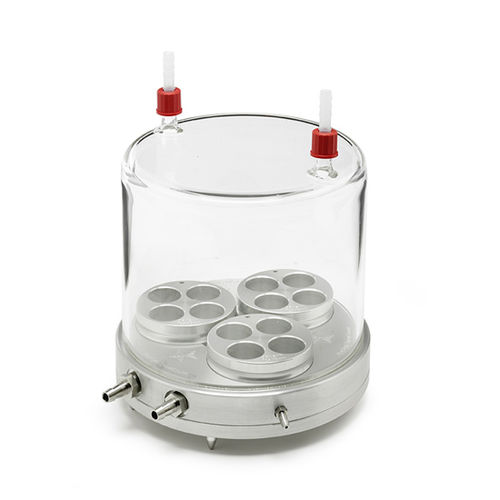

Laboratory reactor DrySyn SnowStorm

low-temperatureglass

The DrySyn Snowstorm reactor offers an attractive solution to low temperature reaction chemistry. Purging the dome with nitrogen / argon prevents the formation of ice around the reactors at sub-ambient temperatures. Active temperature control from +150 oC to -30 oC  permits unattended operation of up to 27 vials at any one time. With a small bench top footprint, the DrySyn Snowstorm allows increased throughput and screening without taking up valuable fume hood space. Our gallery images show the DrySyn SnowStorm reactor with both Grant and Julabo chillers. • Max. solution temperature* -30oC • Kit supplied:  Cooling base, glass dome, one pack of 3 standard reaction vial inserts as detailed below. • This base will also fit our Multi/Multi-M/Multi-S range of inserts for round bottom flasks from 5 mL to 500 mL. • Vial / Tube Reaction scale: Standard sizes, each 4 position except 27.40mm / 28.20mm options: • 11.80mm (will fit 2 mL HPLC sample vials) • 15.00mm (will fit 1 dram vials) • 16.20mm (will fit CEM microwave tubes) • 17.40mm (will fit Biotage 2-5 mL microwave tubes) • 20.20mm (will fit robot tubes) • 24.40mm (will fit Radleys tubes) • 25.75mm (will fit Wheaton reactor vials) • 27.40mm (will fit 20 mL Scintillation vials) this size is a 3 position • 28.20mm (will fit large Biotage tubes) this size is 3 position • Custom : Choose any diameter up to 28.20mm • Material: anodised aluminium • Base diameter: 87mm
