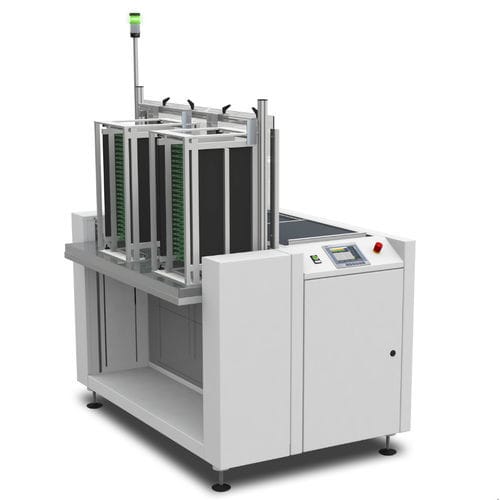

Printed circuit board loading and unloading system VEGO AES 01

automatic

Description The line loading station AES 01 is used to automatically feed PCB ́s into a SMT-production line or into individual process machines e.g. stencil printers, pick and place systems, reflow ovens or test systems. The AES01 uses an electrically driven pusher to slide the PCB`s out of the magazine and onto the receiving conveyor of the following unit. The magazines are changed manually. Features _ Magazine platform vertically aligned using a tension clamp _ Sensor recognition of magazine change and automatic reset _ Pusher is adjusted using a tension clamp located on the middle of the magazine Options _ Transport height 950 mm ± 50 mm _ Magazine adaptation _ Multiple output _ Re-insertion mechanism _ Hybrid magazine
