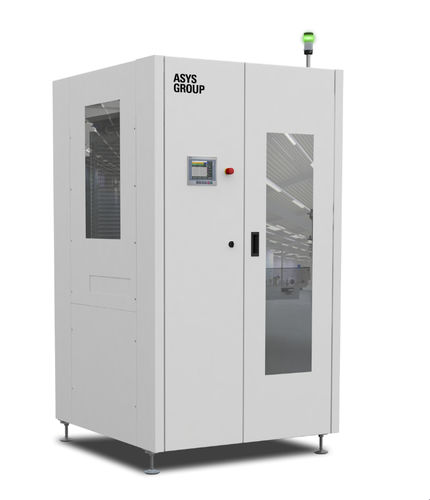

PCB buffer system VEGO FPS 10B SPI

Description The buffer station FPS 10B SPI is used to store PCB ́s which have been tested as „good“ or bad“. Bad PCB ́s will be always buffered and are only unloaded on request from the operator. On demand, the good PCB ́s will be automatically buffered from the downstream system. The machine is characterized by its short cycle times and can be used behind a solder paste inspection system (SPI) to compensate for process-related downtimes. The FPS 10B SPI works according to the FIFO (First In / First Out) principle and can store up to 10 PCB ́s. The buffer itself consists of multiple closed conveyor segments built on top of each other which can also easily process PCBs with sideward cut-outs. Features _ Touch Display with graphical user interface _ Product parameters can be changed during running operation _ Product memory function _ Operating modes and settings: - FIFO - Pass-through - Buffer „Bad“ PCBs - Buffer „Bad“/“Good“ PCBs - Buffer slots can be enabled/disabled _ Average Cycle time < 15s. with FIFO _ Electric width adjust _ Special communication to SPI systems (RS 232)
