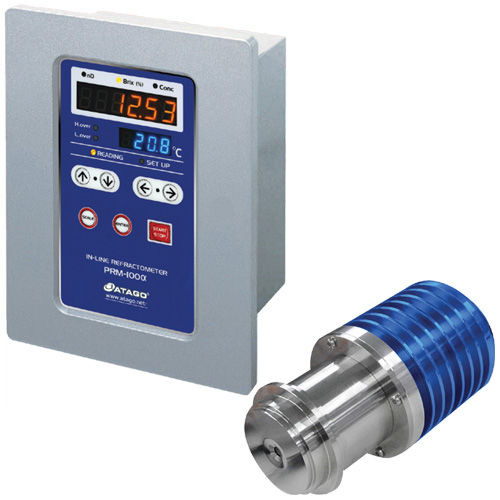

The unit measures the refraction of light generated between the prism surface and a liquid sample. The PRM-100α is upgraded from the PRM-85 in the following aspects:
• Wider than ever 0.0 to 100.00% Brix range
• Improved measurement accuracy: Brix ±0.05%, nD ±0.00010
• Two options for setting the minimum indication decimal place
• Simple two-piece construction: detection section and operation display section
• Easy-to-read color display panel.
Simply attach the unit to a piping system to monitor food or beverage production, pharmaceutical production, industrial fluid, washing devices, dilution/mixing devices, etc. Continuously monitor water content and mixing ratio with successive measurements of refractive index, Brix, or concentration.
*The prism is specially designed to prevent solid materials from collecting on the surface, even after extended periods of use.
Introducing An Ideal In-line Unit for Low Concentration Samples
Featuring a Brix range of 0 to 20%, with a high accuracy of ±0.050%, our newest in-line unit, the PRM-2000α is ideal for precision measurement of low concentration samples, as well as fruit juices and other beverages.Moreover, the PRM-2000α has an even higher accuracy of ±0.007% for samples with a low Brix range of 0.000 to 2.000%. The detection section is able to withstand temperatures between -30 to 165℃ (during SIP / CIP).
