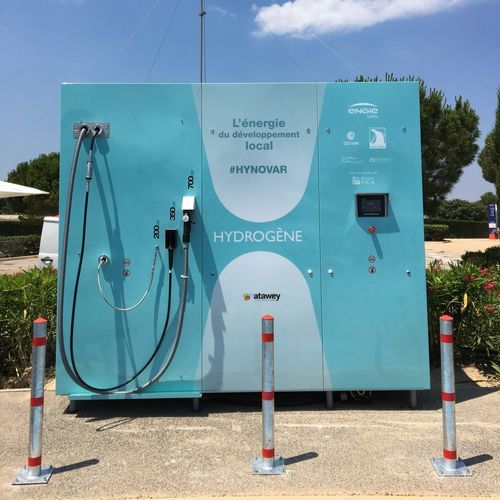

Hydrogen refueling station Compact series

mobile700 bar300 bar

Compact stations are turnkey and all-in-one stations, able to deliver a maximum of 100 kg of hydrogen in one day and up to 60 kg daily. They fit into a single space : storage, compression, distribution and screen. They make it possible to start up ecosystems, to carry out pilot projects or to test new vehicles. Simplified installation With a minimum of 6m² of floor space, the construction work and paper work are simplified Multi-pressure Single, double or triple pressure: 300, 350 or 700 bars, for light and heavy vehicles. 70,000km to 1,5M km per year Up to 15 refills of light vehicles or 3 refills of heavy vehicles daily Refueling of light vehicles in accordance with CEP and SAEJ protocols for uncooled distribution Available for hire Weekly, monthly or yearly, to adapt to your project’s duration All-in-one station a compression, storage and dispensing module with touch screen Green hydrogen production option compact stations can include an electrolyzer for production of 500g to 2kg per day - Maximum level of safety We perform Hazop, Atex and Lopa safety studies and ensure the station’s safety in the event of a hydrogen leak (ICPE 1416 standard) - A rapid filling system Complies with the standards in force: SAEJ 2601 and CEP for light vehicles - Connected Station Intelligent automated safety and monitoring system
