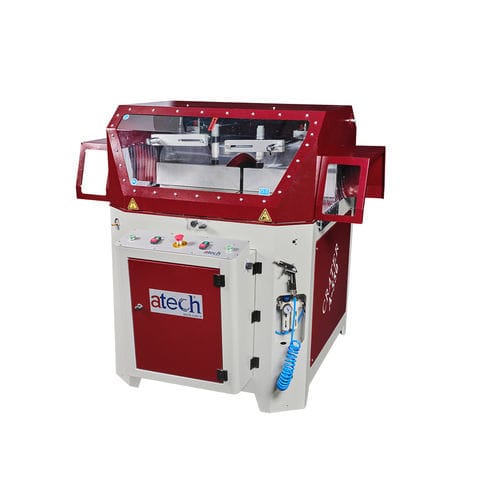

Miter saw A-550

horizontalverticalfor aluminum

• Strong machine body • Greater cutting range than other manufacturers • Twin-hands safety system • Cutting at standard angles and any intermediate angles • Movable Miter • World brand components (saw blade, electrical components) • More powerful chip vacuum system with one manifold • Saw blade rising speed is hydro-pneumatically adjustable • Interior LED lighting • Miter lock angles at 75°,60°,45°,30°,22.5°,15°,0° both left and right • Pivoting range from -75° left to +75° right infinitely adjustable Engine Power: - 4.0 kW, 5.5 HP 400 V, 50/60 Hz Sizes of Saw: - D=550 mm d=30-32 mm RPM: - 2500 Dimensions: - 150 x 130 x 157 cm Total Weight: - 480 kg Air pressure: - 6-8 Bar, 30lt/min • 1 pc. 550 mm saw blade • 2 pcs. vertical clamps • 1 pc. Horizontal clamps • Air blow gun • Conveyor • 1 pc. Horizontal clamp • Chip collector manifold
