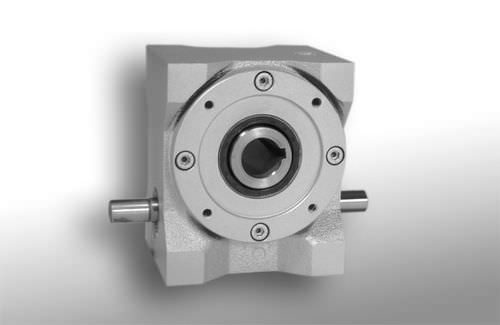

Worm gear reducer S seriesright angle200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm
- Applications
- transmission
- Rotational speed
300 rpm, 600 rpm, 3,000 rpm
(1,884.96 rad.min-1, 3,769.91 rad.min-1, 18,849.56 rad.min-1)- Power
3.02 kW, 11.13 kW
(4.11 hp, 15.13 hp)
Description
The S series is manufactured by ATEK Antriebstechnik. This right-angle worm gear reducer, has nominal transmission ratios of i= 5:1 to 83:1, and maximum torque of 13720 Nm. It has a free drive and output shafts, with 9 from axle base sizes a = 040 mm up to 250 mm.
