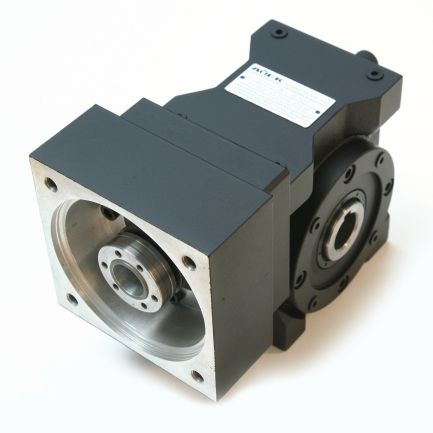

Worm gear reducer SC seriesright angle200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm
- Performance
- high-rigidity
- Applications
- transmission
- Rotational speed
421 rpm, 828 rpm, 4,000 rpm, 5,000 rpm
(2,645.22 rad.min-1, 5,202.48 rad.min-1, 25,132.74 rad.min-1, 31,415.93 rad.min-1)
Description
The Type SLC is a worm gearbox designed for installation on servo motors. It features a drive end with a square flange and clamping coupling to ensure an efficient work output.
The gearbox works with an acceleration torque of 1100 Nm and a transmission ratio that ranges from 5:1 to 26:1. The enhanced torsional rigidity of the gearbox leads to minimum circumferential backlash.
