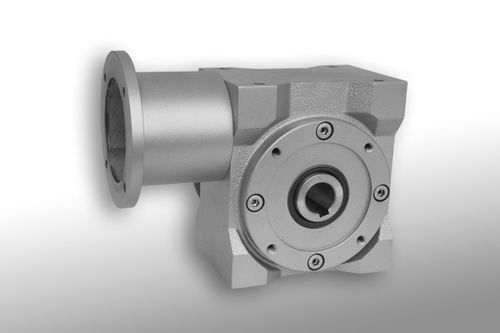

Worm gear reducer SL right angle200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm
- Applications
- transmission
- Rotational speed
300 rpm, 3,000 rpm
(1,884.96 rad.min-1, 18,849.56 rad.min-1)- Power
2.82 kW, 3.02 kW, 8.62 kW, 11.13 kW
(3.83 hp, 4.11 hp, 11.72 hp, 15.13 hp)
Description
The SL is a type of worm gearbox manufactured by Atek. It can be installed on an IEC standard motor.
The unit features a nominal transmission ratio of 05:1 to 83:1. It has a maximum output torque of 17,720 Nm. The device comes in 9 axle base sizes from 040 mm to 250 mm. It is equipped with motor latern and coupling in the drive side.
