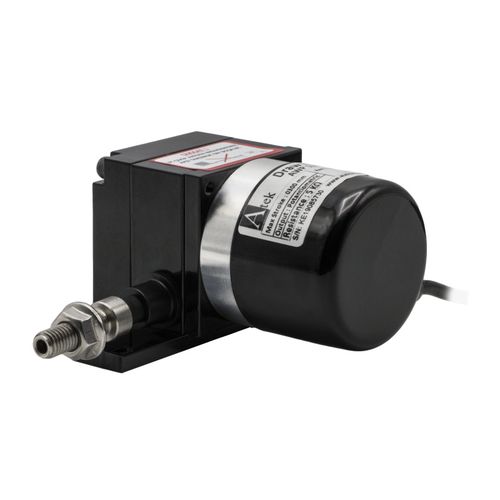

Draw-wire position sensor AWP 110 Drawpotentiometeranalog outputmetal
Add to favorites
Compare this product
Characteristics
- Type
- draw-wire
- Technology
- potentiometer
- Output signal
- analog output
- Measurement object
- metal
- Applications
- industrial
- Other characteristics
- compact
- Measuring range
Max.: 1,200 mm
(47.24 in)Min.: 0 mm
(0 in)- Linearity
0.5 %
- Supply voltage
Max.: 10 V
Min.: 0 V
- Ambient temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
Different stroke (measuring) lengths between 100 mm and 1200 mm
±0.5% FS linearity
2 m/s maximum speed
Potentiometric, 0-10 VDC or 4-20 mA analog output
Small structure
IP53 protection class
General Features
Compact design
Easy installation
2 m/s maximum speed
Shock/Vibration resistant
Aluminum anodized body
Applications
Elevators
Press machines
Crane systems
Wood processing machines
Marble processing machines
Storage positioning
Dam protections
Sluice gate control
Air compressors
Glass processing machines
Lifting platforms
Applications in medical technologies (operating table etc.)
Forklifts
Screw machines
Paper machines
Sewing machines
Hydraulic machines
Sheet metal machines
Printing machines
Horizontal control equipments
Construction machines
Industrial robots
Injection machines
X-Y axis displacement
Liquid level measurements and position control
