Absolute rotary encoder SAS-T
magnetic14-bit14-bit

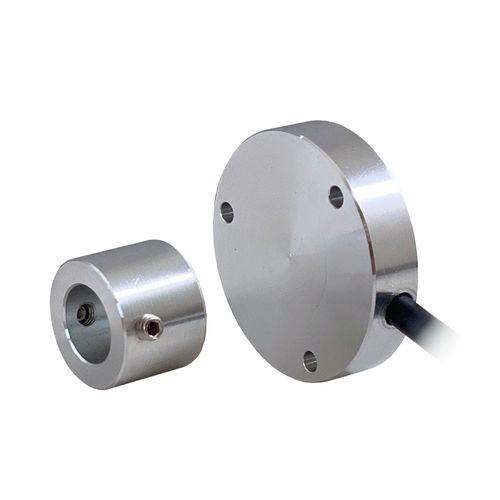

Absolute rotary encoder - SAS-T - ATEK SENSOR TECHNOLOGIE - magnetic / 14-bit / 14-bit
Absolute rotary encoder - SAS-T - ATEK SENSOR TECHNOLOGIE - magnetic / 14-bit / 14-bit
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
magnetic
Absolute encoder resolution
14-bit
Absolute encoder revolution number
14-bit
Construction
non-contact
Output signal
CANopen
Protection level
IP67
Other characteristics
compact, redundant
Output frequency

333 Hz

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

Absolute measurement with magnetic principle CANopen output Redundant output Linearity up to ±0,1° 14 bit resolution 3000 RPM operating speed IP67 protection class Non-contact measurement with magnetic principle; 40 mm body diameter; absolute measurement; CANopen output; compact design General Features Absolute measurement with magnetic principle 0-360˚ measuring range User selectable angle increase direction 14 bit angular resolution Linearity up to ±0,1° CANopen output Redundant output High accuracy Long service life Compact design IP67 protection class Applications Identifying multi-axis orientation in CNC machines used in component manufacturing Automatically determine the height of the scissor bearings used in hospital Correct placement of multiple stabilizers for large vehicles such as cranes or air lifts Automatic doors or slots to move without limiting key Continue robotic movement even after a power failure
