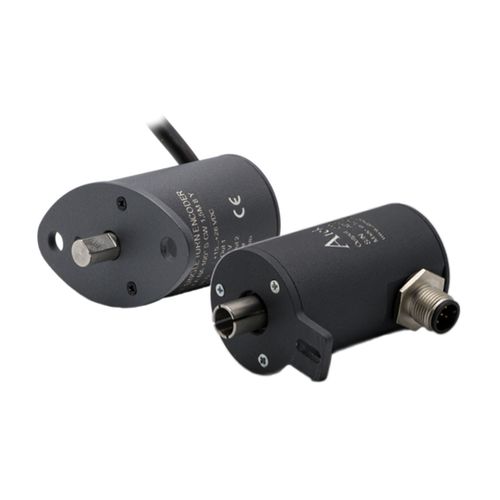

Absolute rotary encoder SAS 37

magnetic14-bit14-bit

Absolute measurement with magnetic principle 37 mm body diameter CANopen or analog output Shaft, semi hollow shaft and sleeved options 14 bit angular resolution 3000 RPM operating speed IP67 protection class Absolute measurement with magnetic principle; 37 mm body diameter; CANopen or analog output; compact design General Features Shaft, semi hollow shaft and sleeved options 14 bit angular resolution Analog or CANopen output options Redundant output Analogue output signal forms can be selected according to 3 selected points High sensitivity IP67 Protection class Applications Identifying multi-axis orientation in CNC machines used in component manufacturing Automatically determine the height of the scissor bearings used in hospitals Correct placement of multiple stabilizers for large vehicles such as cranes or air lifts Automatic doors or slots to move without limiting key Continue robotic movement even after a power failure
