32 ms fast response time
Audible warning system
Easy montage

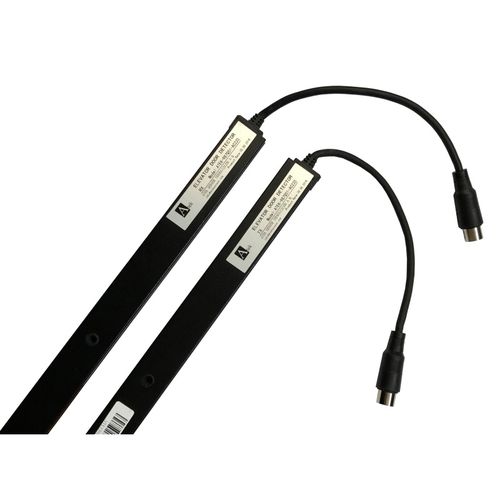

Infrared light curtains for door safety detection; L type bracket mounting; 36 photodiodes; audible warning system
General Features
32 ms fast response time
Audible warning system
36 photodiodes
Low power consumption
Easy installation
Long LED light lifetime
Technical Features
Marka -
Atek
Response Time -
65 ms relay output, 41 ms transistor output
Number of infrared diodes -
36 pieces
Beam scanning -
174-106 beam
Detection height -
20 – 1678 mm
Infrared Diode Distance -
47,50 mm
Power consumption -
4W ya da 100 mA @ 24VDC
Operating temperature -
-20ºC … +65ºC
Mounting tolerance -
Up / Down: ± 15 mm / 7º
Forward / Reverse: ± 3 mm / 5º
Mechanical dimensions -
2000 mm x 28 mm x 10 mm
Infrared Led Light Life -
<100000 Lux
Applications
Doors requiring non-contact safety
Elevator, building entrances etc.
Staircase
Burglar alarm systems
Automatic daylight lamps
