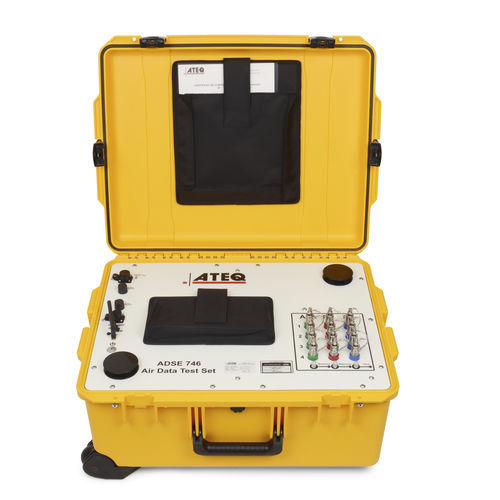

Pitot test stand ADSE 746

for materialsfor civil and military aviationmechanical

The ADSE 746 caters fully for all aircraft types and the different electrical power supplies. It can be used for testing high performance civil and military aircraft, fixed and rotary wing. Themulti-pressure outlets option can suit themore complex pilot-staticsystems. This Pitot Static tester is designed primarily for flightline use to cover the testing of all barometric and manometric pressure instrument systems. The large touch screen display, with on-screen help, enables all checks to be carried out easily on the flight deck or in the cockpit, by a single operator. The test set is robust and housed in a mobile weatherproof case fitted with tire wheels. An attached bag contains the pressure hoses and electrical cables. ADSE746 FEATURES •Built-in pressure and vacuum pumps •Liquid crystal colour display with touch sensitive screen for operator instructions/help •Remote control unit based on Windows CE tablet PC •Complete self check of set before use •High accuracy, high resolution •RVSM compliant •Programmable leak test •Programmable flight envelope to protect equipment under test •All four primary flight parameters displayed simultaneously •Programmable (password write protected) test schedules •Selectable pressure units: hPa; mb; in Hg; mmHg; ft; m; kts; km/h, ft/min; hm/min, Mach number
