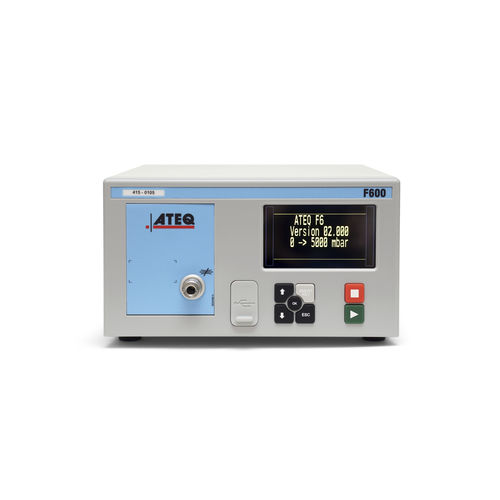

Absolute pressure decay leak tester F600
compactautomatic

Absolute pressure decay leak tester - F600 - ATEQ - compact / automatic
Absolute pressure decay leak tester - F600 - ATEQ - compact / automatic
Absolute pressure decay leak tester - F600 - ATEQ - compact / automatic - image - 2
Absolute pressure decay leak tester - F600 - ATEQ - compact / automatic - image - 3
Absolute pressure decay leak tester - F600 - ATEQ - compact / automatic - image - 4
Add to favorites
Compare this product


Characteristics

Type
absolute pressure decay
Other characteristics
automatic, compact

Description

Compact leak detector for production testing The F600 is a compact air/air leak detector used to test the air tightness of parts on production lines. It is specially adapted for automatic and semi-automatic workbenches. The method used is based on the measurement of a small variation or drop in pressure with a piezzo sensor. - Up to 10 Bar test pressure - Compact - Excellent value - Simple set-up Main Features: • - Pressure decay leak testing from 1 to 100 kPa (resolution 0.01 kPa) • - Range of measurement from 0 to 10 bar • - Test modes: o - Flow units (sccm, mm3/s, cm3/s, cm3/min, cm3/h) o - Blockage test o - & more depending on your application • - 128 programs • - Serial link: o - RS232: printer, modbus RTU, WinATEQ 300, sesam and parameter storage modules o - Time and date display, choice of languages and units • - 6 inputs/ 6 outputs 24 V programmable for external automation • - Mechanical or Electronic regulator Applications: Automotive, domestic appliances, medical and packaging Options: • - 2 pneumatic outputs for the piloting of seal jigs
