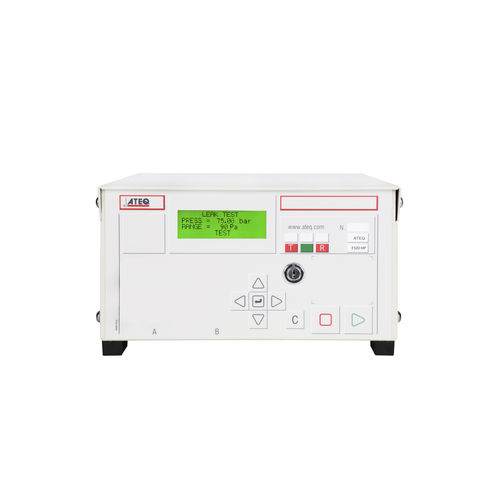

High-pressure leak tester F520 HP
for automotive applicationsautomaticin-line

High-pressure leak tester - F520 HP - ATEQ - for automotive applications / automatic / in-line
High-pressure leak tester - F520 HP - ATEQ - for automotive applications / automatic / in-line
Add to favorites
Compare this product


Characteristics

Type
high-pressure
Applications
for automotive applications
Other characteristics
automatic, in-line, compact

Description

F520 HP – HIGH PRESSURE LEAK DETECTOR FOR PRODUCTION TESTING Without any doubt, the smallest high-pressure leak detector on the market up to 100 bar. Specially adapted for automatic, semi-automatic or manual operation, the F520HP has a comprehensive range of standard specifications as well as a complete package of options and accessories. F520 HP : APPLICATIONS Catheters, refrigeration parts, oil radiators, HP tubes and pipes, valves, hydraulic brakes… F520 HP : FEATURES • Differential pressure decay leak measurement • 1 measurement range (ΔP) F.S. : 5000 Pa • 32 programs • Languages (English + other one) • Electronical pressure regulator 4 MPa • Mechanical pressure regulator 8 MPa TEST MODES : • ∆P (Pa, 1/10 Pa) • ∆P/t (Pa/s, 1/10 Pa/s) • Flow units (mm3/s, cm3/s, cm3/min, cm3/h) • Blockage test • And others, depending on your applications
