Single post lift ATH-Single Lift 25M
2.5 tonelectro-hydraulicfor car

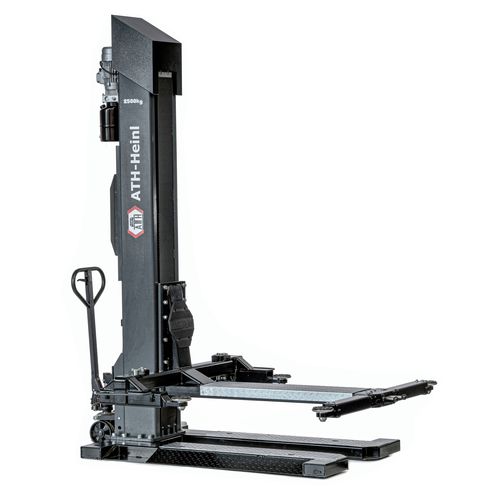

Single post lift - ATH-Single Lift 25M - ATH-Heinl GmbH & Co. KG - 2.5 ton / electro-hydraulic / for car
Single post lift - ATH-Single Lift 25M - ATH-Heinl GmbH & Co. KG - 2.5 ton / electro-hydraulic / for car
Add to favorites
Compare this product


Characteristics

Type
single post
Maximum load
2.5 ton
Operation
electro-hydraulic
Applications
for car
Voltage
400 V
Other characteristics
mobile
Lifting height

Min.: 0 mm
(0 in)

Max.: 1,870 mm
(73.622 in)

Lifting time

40 s

Motor power

1.5 kW
(2.04 hp)

Column height

2,910 mm
(114.57 in)

Description

Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function Central control unit with energy set (230V / 12V) Mobile & stationary use with the help of the high-quality wheels or attachment to the floor Safety Control: Electromagnetic safety catches that automatically unlock when lifting and lowering Safety Lock: ability to lock the load on to the safety mechanism Multifunctional mounting via double telescopic support arms and support plates
