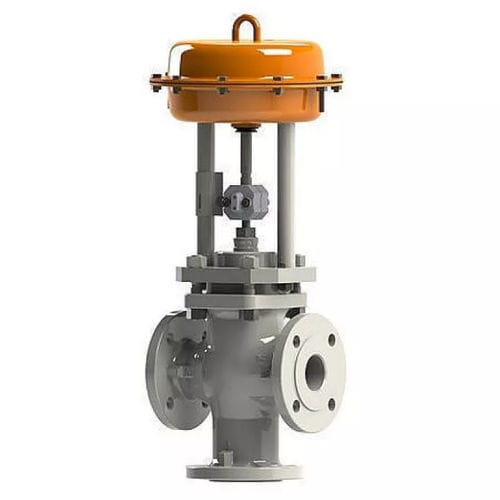

Diaphragm valve CTV-THWelectrically-actuatedpneumatically-operatedshut-off
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatically-operated, electrically-actuated
- Function
- for control, shut-off, drain
- Media
- for oil, for petroleum, for gas, for steam
- Body
- flange, seat, stainless, carbon steel, steel, alloy
- Applications
- for the petroleum industry, for the chemical industry, process, for pipelines, for heating, for the paper industry, cryogenic, for the mining industry, for gas turbines, refinery, power line, for boiler
- Number of channels
- 3-way
- Associated function
- reducing
- Other characteristics
- ISO, full-flow, emergency, integral, modulating, bypass, pneumatic piston, fire-safe, ATEX
- DN
Min.: 1.5 in
Max.: 12 in
- Pressure
Min.: 16 bar
(232.1 psi)Max.: 100 bar
(1,450.4 psi)
Description
- Has functions of dividing one-way flow into two-way flow or combining two-way flow into one-way flow.
- Has features of S-shape passageway、cage-guided、quick-disassemble seat and integral design, ideal for heat exchanger to adjust temperature.
- In constant flow applications, the bi-directional ports of a 3 way control valve allow water to bypass the coil or load through mixing or diverting.
- An actuator is used to force an upward and downward movement of the valve’s plug which works to open and close off the different ports to redirect pressure and flow.
As mentioned earlier, 3 port control valve can be used solely for opening or closing a passage, or for modulating and precisely controlling the flow and temperature of the process. In comparison 2-way valves are the most cost-effective choice for diverting and mixing applications.
