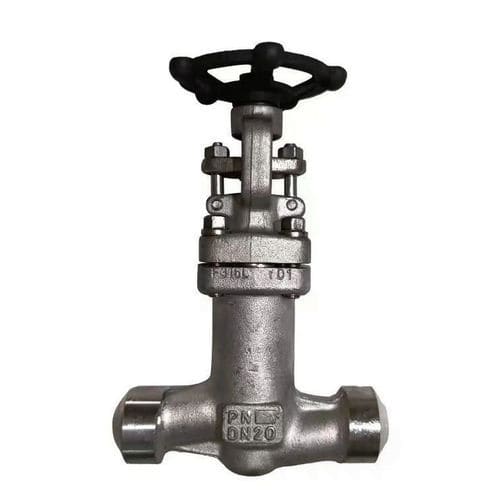

Valve with bellows seal GLV-BLSglobewith handwheelpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, pneumatically-operated
- Function
- shut-off, regulating
- Media
- for water, for oil, for chemicals, for fuel, for gas, for steam
- Body
- welded, stainless steel, carbon steel, steel, alloy, Hastelloy®
- Applications
- industrial, industrial, for the chemical industry, for process applications, for pipelines, for liquids, for the petroleum industry, refinery, for boiler, power line, for heating, for the paper industry, for gas turbines, cryogenic, for the mining industry
- Number of channels
- 2-way
- Fluid specification
- for aggressive media, for corrosive fluids, for abrasive fluids, for flammable fluids, for hazardous fluids, for low-viscosity fluids, for toxic fluids
- Associated function
- reducing, transfer
- Other characteristics
- ISO, standard, high-pressure, full-flow, high-temperature, emergency, with bellows seal, ATEX
- DN
Min.: 0.5 in
Max.: 2 in
- Pressure
Min.: 100 bar
(1,450.4 psi)Max.: 250 bar
(3,625.9 psi)
Description
- Have enhanced outer sealing capability when compared to standard globe valves.
- Stainless steel bellow prevents any external leakage.
- There is also a stuffing box as a secondary sealing around the valve stem, which should eliminate leakage to atmosphere for a limited period.
- Employed in piping systems to safeguard against leakage.
- When selected and installed properly, they minimize the risk of potentially harmful chemicals causing injury or illness to workers and damage to the surrounding environment.
For all the valves, material test certificates, hydraulic test certificates & MTC 3.1 will be provided. And, third party inspection can be conducted based on client's request.
