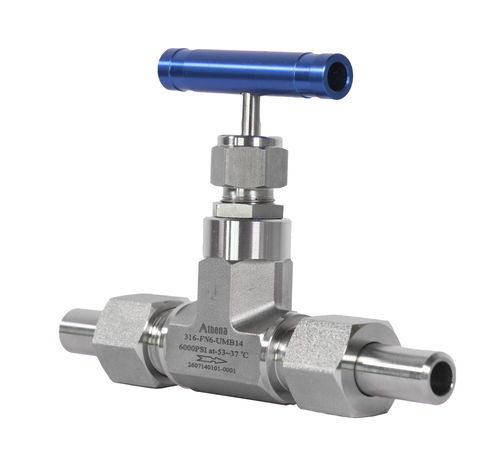

Needle valve FN seriesmanualfor controlshut-off
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- for control, shut-off
- Media
- for water, for air, for steam, for compressed air
- Body
- threaded, weld, stainless steel, steel, forged steel, titanium
- Applications
- for industrial applications
- DN
Max.: 28 mm
(1.102 in)Min.: 3 mm
(0.118 in)- Pressure
Max.: 689 bar
(9,993.1 psi)- Temperature
Max.: 648 °C
(1,198 °F)Min.: -53 °C
(-63 °F)
Description
Athena Forged Needle Valve
Performance
-Compact forged design for high temperature and high pressure
-Rolled threads of packing bolt ensures longer life service
-Cold rolled threads of valve stem
-Stellite surfacing lower stem provides better wear resistance
-Back seat seals in fully open position
Features
-Material: 316SS, titanium, other material as request
-Working Pressure: Up to 10000 psi (689bar)
-Working Temperature -65℉ to 1200℉（-53℃ to 648℃）
-End Connection Type: Metric and fractional tube fittings
-NPT threads, ISO/BSP threads, weld ends
-End Connection Size: 1/8 to 11/4 in., 3 to 28 mm
