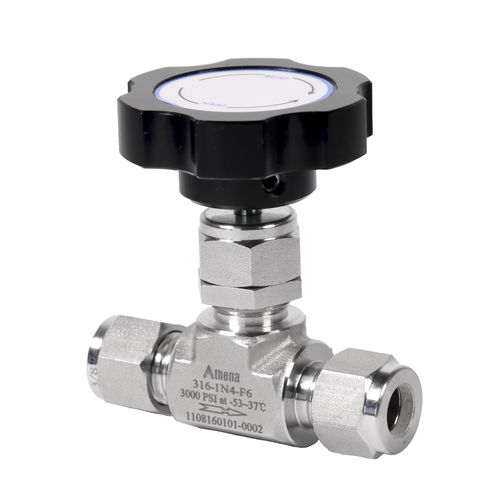

Needle valve INmanualshut-offfor control
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- for control, shut-off
- Media
- for water, for steam, for compressed air
- Body
- threaded, 2-piece, stainless steel, titanium
- Applications
- for industrial applications
- Other characteristics
- ISO, standard, compact, wear-resistant
- DN
Max.: 18 mm
(0.709 in)Min.: 3 mm
(0.118 in)- Pressure
Max.: 413 bar
(5,990.1 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 260 °C
(500 °F)Min.: -53 °C
(-63 °F)
Description
-Packing nut makes outside adjusting possible
-Full supporting packing reduces adjusting requirement
-Cold rolled threads of valve stem
-2-piece v-type packing: Better seal, ware resistance, lower torque force
-Valve stem material: High hardness stainless steel, and soft material available
Features
-End Connection Type: Metric and fractional tube fittings, NPT threads, ISO/BSP threads, MS threads
