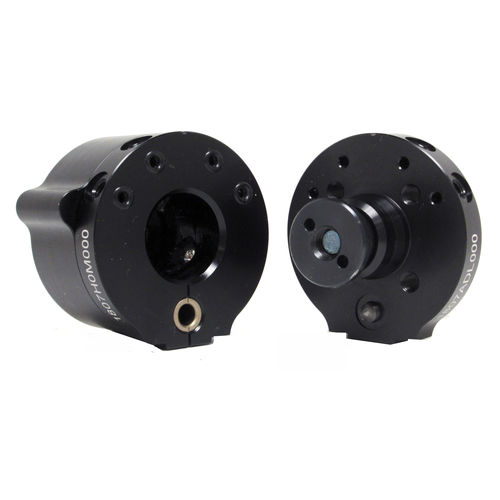

Robotic tool changer MC-10

manual

-Designed for cobot applications up to 5kg. -Lock and Unlock visual indicators. -Tactile “Click” for Lock and Unlock. -Module flat for adding electrical utilities. -Four (4) integrated pneumatic pass-through ports. -Ergonomic collar design. -Interface plates available for direct mounting to common ISO patterns. Suggested Payload Limit: - 11 lb Static Moment Capacity (X & Y): - 33 lbf-in Static Moment Capacity (Z): - 110 lbf-in Positional Repeatability - (X, Y, & Z): - 0.0035 in Weight - when coupled: - 0.84 lb Master Weight: - 0.65 lb Tool Weight: - 0.19 lb Pneumatic Pass-through Ports (qty) Size: - (4) M5 or #10-32 Air Only
