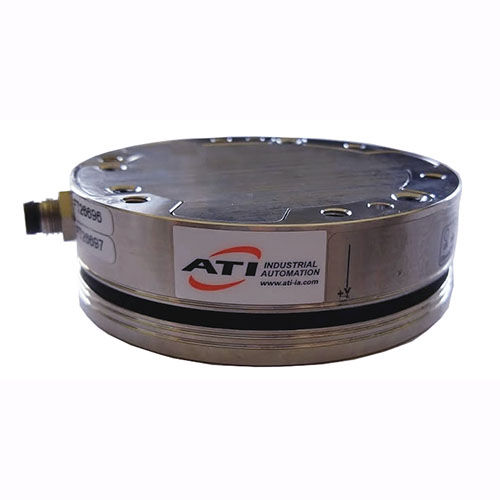

Force and torque sensor Axia80-M8

-A high-performance, low-cost sensor that offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application. -All of the electronics are built into the transducer body, which keeps the cost down and the footprint smaller. Like all of ATI's F/T products, the Axia80 features superior quality and robustness. -Available with Ethernet, EtherCAT, and Serial communication. -Extremely-High Strength: Precision-machined from high-strength aircraft aluminum. Maximum allowable single-axis overload values of 5.0 to 12.5 times rated capacities. -High Signal-to-Noise Ratio: Strain gages provide exceptional resolution and accuracies better than 2% full scale across all axes and calibrations. -IP64 Protection from dust and splashing water. Typical Applications -Electronic assembly -Polishing -Real-time force control -Product testing -Pick and place -Collaborative robotics Stiffness (Calculated) X-axis & Y-axis forces (Kx, Ky) - 1.1x107 N/m Z-axis force (Kz) - 2.0x107 N/m X-axis & Y-axis torque (Ktx, Kty) - 1.1x104 Nm/rad Z-axis torque (Ktz) - 2.3x104 Nm/rad Resonant Frequency Fx, Fy, Tz - 1500 Hz Fz, Tx, Ty - 1500 Hz Physical Specifications Weight* - 0.28 kg Diameter* - 82 mm Height* - 25.4 mm
