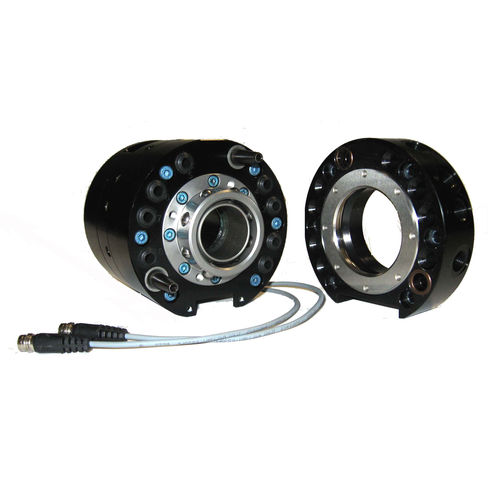

Robotic tool changer QC-27 Hollow-Wrist

automatic

-24 mm Through Hole - Master and Tool. -Air connections on Master side allow for direct integration with many Hollow-Wrist robots. -Large number of pass-through air ports. -No-Touch locking technology allows up to 0.08 inch (2.0 mm) plate separation when locking. -Patented Fail-Safe locking mechanism design results in low force acting on the piston. -Large piston diameter and outward ball travel increase moment capacity. -All locking parts made of Rc58 stainless steel. -Long-life bushings for pneumatic pass-through. Suggested Payload Limit: - 83 lb Locking Force @ 80 psi (5.5 bar): - 780 lb Static Moment Capacity (X & Y): - 750 lbf-in Static Moment Capacity (Z): - 880 lbf-in Positional Repeatability - (X, Y, & Z): - 0.0006 in Weight - when coupled: - 2.95 lb Master Weight: - 2.3 lb Tool Weight: - 0.65 lb Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): - 0.08 in Pneumatic Pass-through Ports (qty) Size: - (8) G 1/8 (BSPP)
