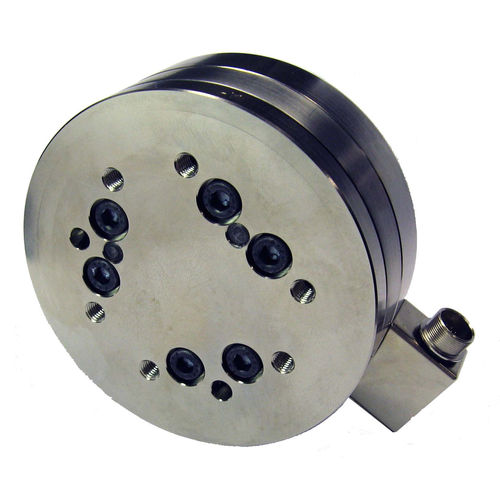

Force and torque sensor Omega85

-The Omega85 offers high capacity in a compact, low-profile design. -Extremely-High Strength: EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values are 5.9 to 24.9 times rated capacities. -High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion. -IP65 and IP68 (10m) Versions Available: The IP65 version of the transducer is protected against water spray. The IP68 version is submergible in fresh water to a depth of 10 meters. Typical Applications -Telerobotics -Humanoid robots -Rehabilitation research -Prosthetics research -Robotic machining -Robotic assembly Single-Axis Overload Fxy - ±13000 N Fz - ±27000 N Txy - ±500 Nm Tz - ±610 Nm Stiffness (Calculated) X-axis & Y-axis forces (Kx, Ky) - 7.7x107 N/m Z-axis force (Kz) - 1.2x108 N/m X-axis & Y-axis torque (Ktx, Kty) - 8.1x104 Nm/rad Z-axis torque (Ktz) - 1.3x105 Nm/rad Resonant Frequency Fx, Fy, Tz - 2100 Hz Fz, Tx, Ty - 3000 Hz Physical Specifications Weight* - 0.658 kg Diameter* - 85.1 mm Height* - 33.4 mm
