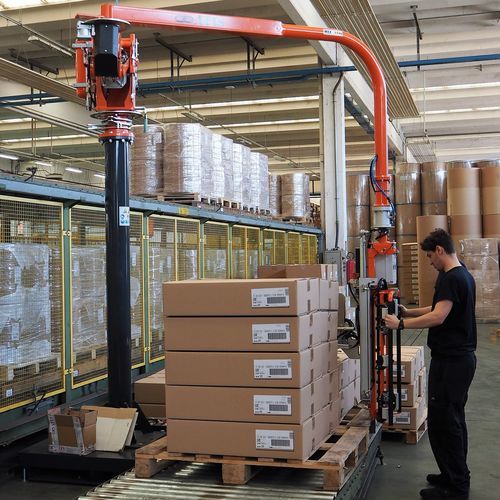

Pneumatic manipulator arm Atismirus 100

with gripping toolwith suction cupfor box handling

• - swivel rigid arms • - movement of rather heavy loads • - handling top-heavy products Pneumatic rigid arm manipulator with swivel arms, the right compromise between capacity and agility. The right choice for handling medium weights and gives its best adapting to many common working situations. Thanks to the completion with a specific gripping tool it gives the opportunity to handle even offset products in any direction without big effort. Features Operation: - pneumatic only Transmission: - through a parallelogram and terminal arm Configuration: - column mounted fixed to the floor, column mounted on self standing base plate, fixed overhead, overhead on rails Net capacity: - 180 kg* (radius 2900 mm) / 397 lbs* (radius 9 ft 611/64 in) Radius Max: - 4000 mm* (max load 100 kg) / 13 ft 131/64 in* (max load 220 lbs) Radius Min: - 400 mm / 1 ft 33/4 in Vertical stroke: - 1500 - 1750 - 2050 mm / 4 ft 111/16 in - 5 ft 857/64 in - 6 ft 845/64 in Supply: - from 0.5 to 0.8 MPa / from 73 to 116 psi of clean, dry and oil free compressed air Column axle: - 360° continuous rotation Intermediate axle: - max 300° rotation Noise level: - <70 dB
