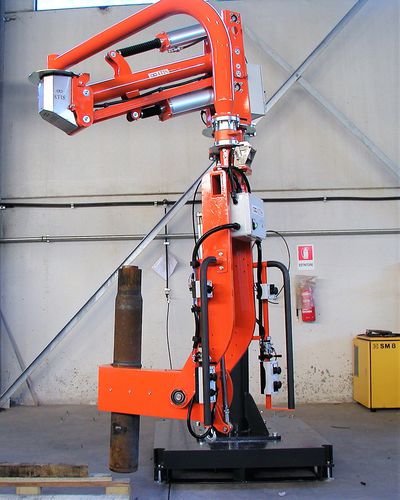

Pneumatic manipulator arm Atismirus 300

with gripping toolloadingfor mechanical components

• - swivel rigid arms • - solution for higher loads • - precision and ergonomics • - reliability • - safety This pneumatic manipulator with articulated rigid arms is the perfect solution for heavier weights. It's developed for increased performances and capacities, but at the same time, it guarantees the highest accuracy and ergonomics, even in the most challenging conditions. Reliability and safety with bulky and heavy loads make this model the right choice for heavy industry, while our technical experience completes it with customized gripping tools to comply with customer's requirements. Features Operation: - pneumatic only Transmission: - through a parallelogram and terminal arm Configuration: - column mounted fixed to the floor, column mounted on self standing base plate, fixed overhead, overhead on rails Net capacity: - 440 kg* (radius 2450 mm) / 970 lbs* (radius 8 ft 029/64 in) Radius Max: - 4400 mm* (max load 200 kg) / 14 ft 515/64 in* (max load 441 lbs) Radius Min: - 400 mm / 1 ft 33/4 in Vertical stroke: - 1500 - 1750 - 2050 - 2300 mm / 4 ft 111/16 in - 5 ft 857/64 in - 6 ft 845/64 in - 7 ft 635/64 in Supply: - from 0.5 to 0.8 MPa / from 73 to 116 psi of clean, dry and oil free compressed air Column axle: - 360° continuous rotation Intermediate axle: - max 300° rotation Noise level: - <70 dB
