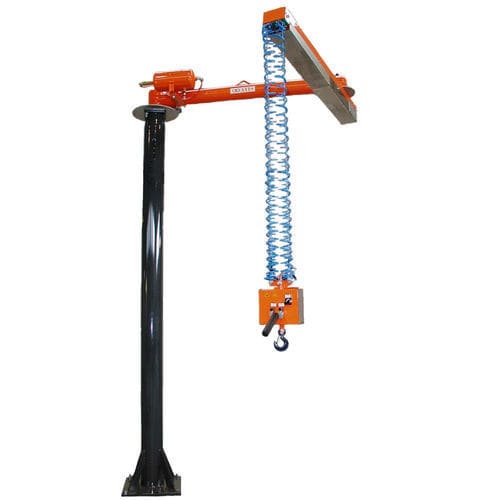

Pneumatic manipulator ATISacer 55

with gripping toolturningfloor-standing

• rope guided vertical stroke • appropriately sized according to the load • each machine is unique Like all ATISACER manipulators, ATISACER 55 is equipped with a double wire rope transmission system combined with a pneumatic cylinder. ATISACER 55 is the smallest of the family, light and easy to handle for loads up to 50 kg (110 lbs); it allows to handle many kinds of products safely and easy, thanks to the special gripping tools that can be integrated. To guarantee most safety, ATISACER 55 works with double rope and comes with load and no-load balancing system. The operator acts directly on the product or the tool, with high precision and without effort. If needed, ATISACER 55 can be equipped with a "sensitive" handle, which allows operating on variable weight products just acting on it. This manipulator can also be installed on a column, both fixed on the floor and transportable self-standing base, or overhead fixed or on rails. Features Operation: - pneumatic only Transmission: - double rope system Configuration: - column mounted fixed to the floor, column mounted on self standing base plate, fixed overhead, overhead on rails Net capacity: - 55 kg* (radius 2500 mm) / 121 lbs* (radius 8 ft 227/64 in) Radius max: - 3800 mm* (max load 35 kg) / 12 ft 539/64 in* (max load 77 lbs) Radius min: - 400 mm / 1 ft 33/4 in Vertical stroke: - 1600 mm / 5 ft 263/64 in Supply: - from 0.5 to 0.8 MPa /from 73 to 116 psi of clean, dry and oil free compressed air Column axle: - 360° continuous rotation Intermediate axle: - max 300° rotation Noise level: - <70 dB
