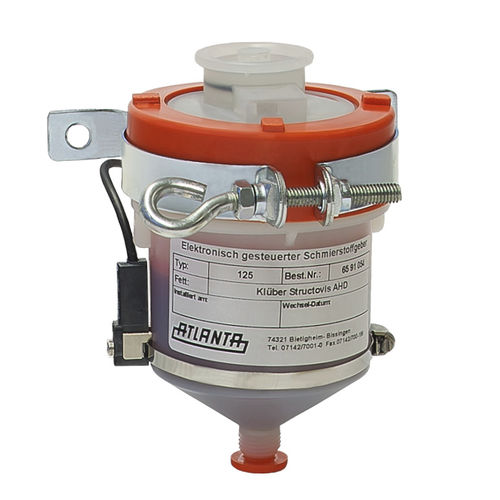

Grease lubrication system

centralizedelectric

To ensure consistent accuracy of the drive system over the years, an adequate lubrication is needed. Manual lubrication is often unreliable and very costly. Lubrication system, developed by ATLANTA for rack and pinion drives, is based on the grease gun principle. An electronic lubricator transforms the lubricant to a felt gear. The dosage can be adjusted individually by a micro switch. This ensures that a permanent, thin lubricating film is present on the tooth flanks. This will provide a metal-to-metal contact, which pulls the damage of the teeth and thus of the completely rack and pinion drive. With the ATLANTA lubrication system is a permanent and controlled lubrication of your drive guaranteed. Electronically controlled lubricator Technical Datas: Lubricator, ready for mounting with accessories 2 sizes: 125cm³ and 475cm³ Design version with and without special grease Lubricants: Klüber Microlube GB0 and Structovis AHD Operating: batterie or external power supply Individually desired dosage, adjustable by micro-switch optional with electr. Detection of end position Extensive accessories for reffiling Felt gear and mounting shaft module 1 - 12 Helical and straight tooth system
