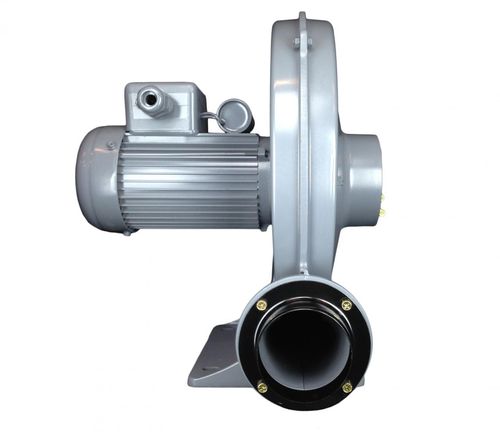

Air blower ABC-201
centrifugalsingle-stagelow-pressure

air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
centrifugal
Number of stages
single-stage
Other characteristics
low-pressure, single-phase
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 479.121 m³/h
(7.985 ft³/h)

Nominal power

0.5 ch
(0.5 hp)

Description

Atlantic Blowers' ABC-201 Single Phase/ Single Stage Centrifugal Blower can be used for various low pressure, high airflow applications. The ABC-201 produces a maximum flow of 282 CFM. The maximum pressure is 6.4 inH2O. The ABC-201 has a power output of 0.5 HP (0.4 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 110-120/220-240 with an FLA rating of 5.2∆/2.4Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 70 dbA. The inlet size is 4" and the outlet size is 3".
