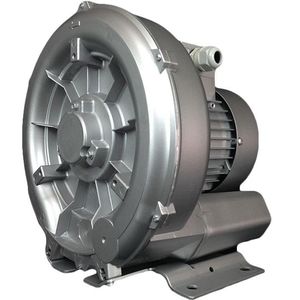

Air blower AB-500
centrifugalsingle-stagefor vacuum

Air blower - AB-500 - Atlantic Blowers, LLC - centrifugal / single-stage / for vacuum
Air blower - AB-500 - Atlantic Blowers, LLC - centrifugal / single-stage / for vacuum
Air blower - AB-500 - Atlantic Blowers, LLC - centrifugal / single-stage / for vacuum - image - 2
Air blower - AB-500 - Atlantic Blowers, LLC - centrifugal / single-stage / for vacuum - image - 3
Add to favorites
Compare this product


Characteristics

Type
air
Technology
centrifugal
Number of stages
single-stage
Applications
for vacuum, regenerative
Other characteristics
three-phase
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 390.772 m³/h
(6.513 ft³/h)

Nominal power

3.5 ch
(3.5 hp)

Description

Atlantic Blowers' AB-500 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-500 produces a maximum flow of 230 CFM. The maximum pressure and vacuum is 88 inH2O and 88 inH2O respectively.The AB-500 has a power output of 3.5 HP (2.55 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275Δ/380-480Y with an FLA rating of 10.7Δ/6.2Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 70 dbA. The inlet/outlet connection size is 2.00" female NPT.
