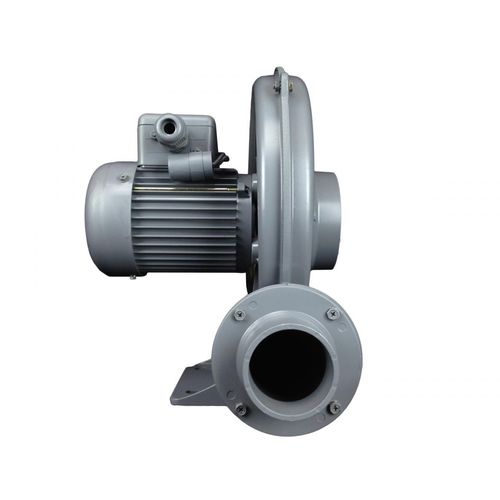

Air blower ABC-100centrifugalsingle-stagelow-pressure
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Other characteristics
- low-pressure, three-phase
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 322.812 m³/h
(5.38 ft³/h)- Nominal power
0.33 ch
(0.33 hp)
Description
Atlantic Blowers' ABC-100 Three Phase/Single Stage Centrifugal Blower can be used for various low pressure, high airflow applications. The ABC-100 produces a maximum flow of 190 CFM. The maximum pressure is 4.4 inH2O. The ABC-100 has a power output of 0.33 HP (0.2 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275/380-480 with an FLA rating of 1.7∆/1.0Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 62 dbA. The inlet size is 4" and the outlet size is 2.5".
