Air blower ABT-500
centrifugalsingle-stagelow-pressure

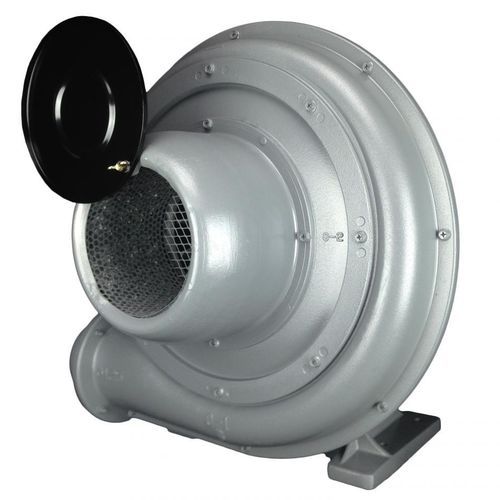

Air blower - ABT-500 - Atlantic Blowers, LLC - centrifugal / single-stage / low-pressure
Air blower - ABT-500 - Atlantic Blowers, LLC - centrifugal / single-stage / low-pressure
Air blower - ABT-500 - Atlantic Blowers, LLC - centrifugal / single-stage / low-pressure - image - 2
Air blower - ABT-500 - Atlantic Blowers, LLC - centrifugal / single-stage / low-pressure - image - 3
Add to favorites
Compare this product


Characteristics

Type
air
Technology
centrifugal
Number of stages
single-stage
Other characteristics
low-pressure, three-phase
Flow

Max.: 3,907.725 m³/h
(65.129 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Nominal power

7.5 ch
(7.5 hp)

Description

Atlantic Blowers' ABT-500 Three Phase/Single Stage Centrifugal Blower can be used for various low pressure, high airflow applications. The ABT-500 produces a maximum flow of 2300 CFM. The maximum pressure is 21.2 inH2O. The ABT-500 has a power output of 7.5 HP (5.5 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is 220-275/380-480 with an FLA rating of 19.4∆/9.3Y. Measuring at a distance of 3 ft. the blower will produce a noise level of 95 dbA. The inlet size is 10" and the outlet size is 6".
