Rotary compressor ZR series
airelectrically-poweredstationary

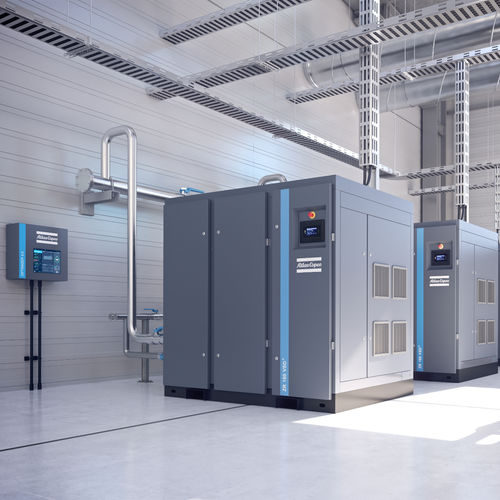

Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 2
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 3
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 4
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 5
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 6
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 7
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 8
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 9
Rotary compressor - ZR series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 10
Add to favorites
Compare this product


Characteristics

Technology
rotary
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial, for food applications
Other characteristics
compact, high-efficiency, energy-saving, variable-speed, air-cooled, water-cooled, with integrated dryer
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 3.5 bar
(50.76 psi)

Flow

Max.: 9,022 m³/h
(318,608.92 ft³/h)

Min.: 71 m³/h
(2,507.34 ft³/h)

Power

Max.: 900 kW
(1,223.66 hp)

Min.: 15 kW
(20.39 hp)

Noise level

69 dB, 71 dB, 72 dB, 74 dB

Description

Industrial rotary screw and tooth oil-free air compressors from 3,5 to 13 bar. High-efficiency oil-free rotary screw and tooth air compressors. Engineered using innovative in-house technology, the ZR & ZT oil-free air compressors are the result of years of research and development. Oil-free screw air compressors ZR & ZT (VSD) Our oil-free rotary screw and tooth compressors are designed to have the lowest lifecycle cost and deliver the highest quality air for industry standards. ZR & ZT compressors are used in industries that require high compressed air quality standards such as Food & Beverage, pharmaceutical, automotive, medical, textile, power generation, chemical, battery, automotive industry and many others. Difference between ZR & ZT Both our ZR and ZT produce certified oil-free air that protects all your critical processes and products. The difference? The ZR is water-cooled, the ZT is air-cooled. With pressure levels ranging from 3.5 up to 13 bar, we maximize your energy savings with a choice of rotary tooth or screw technologies with optimal air quality. ZT 75 VSD+ Premium air-cooled oil-free rotary screw compressor with integrated dryer iMD All-in-one solution A compact, all-in-one quality air solution. ZR and ZT rotary screw and tooth oil-free air compressors are available as Full Feature package with: integrated dryer for reduced installation space variable speed drive (VSD) to minimize your energy costs.
