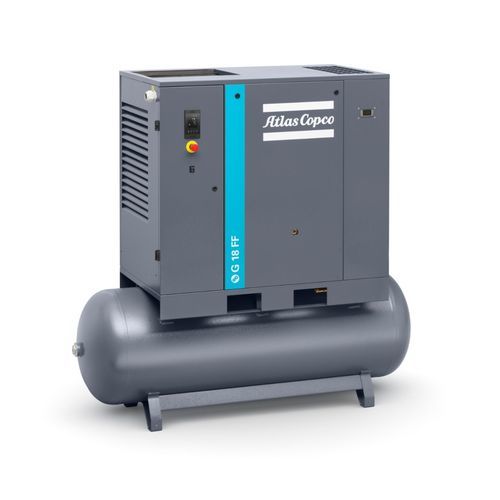

Screw compressor G series
airelectrically-poweredstationary

Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 2
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 3
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 4
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 5
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 6
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 7
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 8
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 9
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 10
Screw compressor - G series - Atlas Copco Compressors - air / electrically-powered / stationary - image - 11
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Applications
tank, flexible
Other characteristics
compact, low-noise, tank-mounted, energy-saving, rugged
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 7.4 bar
(107.33 psi)

Flow

Max.: 2,452 m³/h
(86,591.56 ft³/h)

Min.: 18 m³/h
(635.66 ft³/h)

Power

Max.: 250 kW
(339.91 hp)

Min.: 2.2 kW
(2.99 hp)

Length

Max.: 1,921 mm
(76 in)

Min.: 620 mm
(24 in)

Width

Max.: 833 mm
(33 in)

Min.: 650 mm
(26 in)

Height

Max.: 1,832 mm
(72 in)

Min.: 950 mm
(37 in)

Weight

Max.: 561 kg
(1,236.8 lb)

Min.: 165 kg
(363.8 lb)

Noise level

Max.: 71 dB

Min.: 61 dB

Description

Our G oil-injected rotary screw compressors are designed for reliability and efficiency. Will operate continuously in the harshest environments, avoiding costly downtime and production delays. High reliability Reliable supply of compressed air makes for smooth production. High quality parts and generous safety margins ensures continuous operations in temperatures up to 46°C Easy to install and operate Our compressors are easy to install, operate and maintain. Following a plug-and-play concept, all you need is a flat floor, a power supply and an air net. Latest compressor monitoring technology for easy overview Quiet operations Our G/GX compressors offers a quiet alternative to piston compressors thanks to their rotary screw technology, greatly reducing vibrations. Full sound enclosure for extra low noise levels Robust and compact screw compressors Our oil-injected rotary screw G/GX compressors are powerful and reliable industrial screw compressors. Built from high-quality components and materials, they provide a reliable source of high-quality air in temperatures up to 46°C / 115°F. The compressors are compact, flexible and available in various versions depending on size: floor mounted tank mounted with or without integrated dryer Smart energy saving Elektronikon® panel in use on compressor Our larger compressors are all equipped with the Elektronikon® panel, minimizing energy costs through smart technology. We also have a basic controllerl on our smaller versions, allowing you smart solutions independent of your company size.
