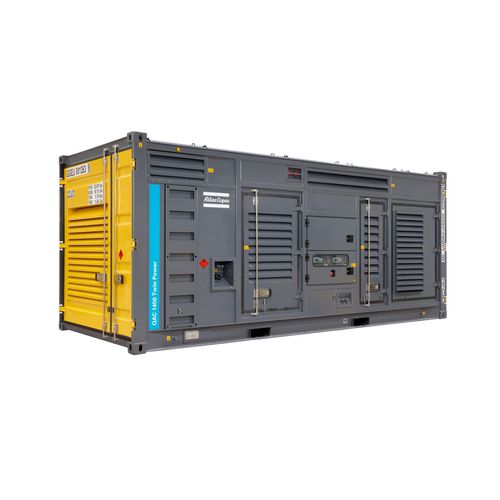

Diesel generator set QAC TwinPower™
three-phasecontainerized50 Hz

Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz
Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz
Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz - image - 2
Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz - image - 3
Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz - image - 4
Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz - image - 5
Diesel generator set - QAC TwinPower™ - Atlas Copco Construction Tools - three-phase / containerized / 50 Hz - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized
Frequency
50 Hz, 60 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Applications
for construction site
Emissions level
Stage V
Power in kVA

Min.: 0 kW
(0 hp)

Max.: 1,450 kW
(1,971.45 hp)

Rated capacity

Min.: 850 kW
(1,155.7 hp)

Max.: 1,272 kW
(1,729.4 hp)

Voltage

220 V, 380 V, 400 V, 440 V, 480 V

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Length

6 m
(19'08" )

Width

3 m
(9'10" )

Height

3 m
(9'10" )

Weight

Min.: 10,400 kg
(22,928.08 lb)

Max.: 19,700 kg
(43,431.07 lb)

Description

Easy and flexible installation in prime or standby applications 2 generators 1 Box The TwinPower is a 20-foot containerized generator with two generators inside, making it perfect for applications that have variable power needs Centralized control & monitoring TwinPower has two controllers, including touchscreen functionality, so you can easily parallel with other generators. You have the choice of island mode or PMS (Power Management System). 24/7 Power Availability The service requirement is less than 2 hours of maintenance for every 500 hours of operation. Due to the TwinPower concept, it is possible to still benefit from 50% of the unit’s total capacity during maintenance operations. Up to 40% Less fuel and CO2 emissions Fully loaded, the QAC TwinPower offers two engines in a single container, solving load issues and reducing fuel consumption up to 40% on variable load applications Ready for stage V We can help you with a smooth transition towards the phased adoption of EU Stage V engine emission standards in 2019/21. arge power generator Double the flexibility, twice the power We understand your need for power, but do your power needs ever change? The QAC TwinPower is a 20-foot containerized generator with 2 generators inside, making it perfect for applications that have variable power needs, whether that’s due to the time of day or the current usage requirements. Fully loaded, the QAC TwinPower offers two engines in a single container, solving load issues and reducing fuel consumption up to 40% on variable load applications. Because you get two generators in one platform,
