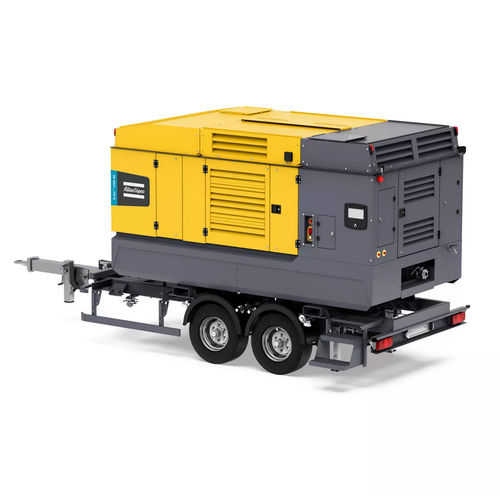

Screw compressor DrillAir series
airdiesel enginemobile

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
diesel engine
Portability
mobile
Application domain
industrial
Applications
fuel, drill
Other characteristics
compact, high-pressure, Stage V
Tank volume

600 l, 700 l, 1,150 l, 1,200 l
(158.5 gal, 184.9 gal, 303.8 gal, 317 gal)

Pressure

Max.: 40 bar
(580.15 psi)

Min.: 13 bar
(188.55 psi)

Flow

Max.: 44 m³/min
(1,553.85 ft³/min)

Min.: 24 m³/min
(847.55 ft³/min)

Power

232 kW, 368 kW, 478 kW
(315.43 hp, 500.34 hp, 649.9 hp)

Length

Max.: 7 m
(22'11" )

Min.: 4 m
(13'01" )

Width

2 m
(6'06" )

Height

2 m, 3 m
(6'06" , 9'10" )

Weight

Max.: 9,960 kg
(21,958 lb)

Min.: 4,750 kg
(10,472 lb)

Description

Reduced drilling costs The DrillAir compressors provide with working pressure up to 40 bar, allowing you to drill more meters per hour at a lower overall cost per meter. Additional 10 % flow With Dynamic Flow Boost you can reach faster flushing and refilling. And that means shorter time to complete the drilling job. Save on transportation Compact and portable design - one truck can carry both a compressor and a drilling rig thanks to the short 4.1 meter compressor frame. High pressure portable compressors - a dedicated solution for drilling With Atlas Copco's DrillAir compressors, you have all the features you need to drill faster and increase your profitability. Efficient drilling requires the right equipment adapted to the specific project. The DrillAir range allows you to choose the compressor that is perfectly tailored to your core business, while providing the flexibility to adapt to any custom application. Better performance with Dynamic Flow Boost Atlas Copco DrillAir compressor in action at a drilling site, demonstrating its robust design and efficiency in challenging environments. This technology provides with additional 10 % of air flow during specific operations such as flushing and drill stem refill. This results in faster flushing and quicker drill stem refill times, reducing the total time required to complete a drilling project. By optimizing these processes, Dynamic Flow Boost helps achieve higher productivity and lower operational costs, making it a valuable feature for businesses focused on maximizing efficiency and performance in drilling operations​.
