Piston compressor LFx series

airelectricfixed

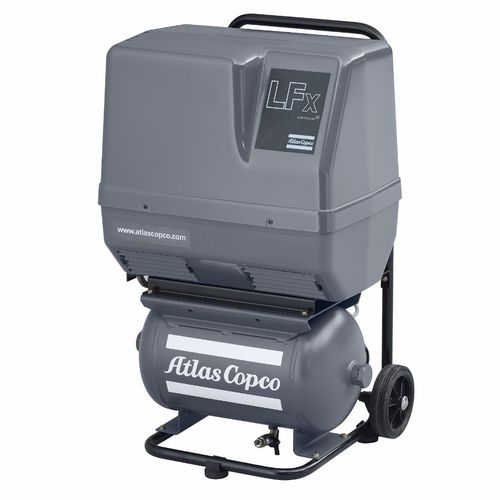

The LFx compressors’ capacity ranges from 1.02 up to 2.53 l/s (2.16 up to 5.36 cfm), with an optional 1- or 3-phase supply and a maximum working pressure of 10 bar (145 psi). Compact and flexible solution You can rely on this compressor to supply high-quality clean compressed air. Also, you can also choose from three different packages and find the best solution for your production needs. Guaranteed 100 % oil-free operation Certified ISO 8573-1 CLASS 0 by the renowned TÜV institute Ease of use Standalone use or easy integration in your OEM (Original Equipment Manufacturer) product. LFx Powerbox The Powerbox is a complete replacement package for receiver mounted units or for customized OEM applications. The Powerbox has noise level between 62-67 dB(A) which is quite low. LFx Trolley As the name suggests, the LFx Trolley comes with wheels for easy transportation. LFx Trolley includes the Powerbox mounted on a 20 I internally epoxy coated air receiver to store oil-free clean air. LFx Tank Mounted LFx Tank Mounted is the Powerbox mounted on a 50 or 90 I internally epoxy-coated air receiver to store oil-free clean air. Technical benefits Quiet operation The LFx comes standard with a silencing hood. Its noise levels are as low as 62 dB(A), so you can install it close to the point of use. Compact 100% oil-free air Thanks to a unique, robust design and the optimal combination of quality materials, LFx compressors offer improved performance and extended product lifetime. Easy maintenance All the LFx’s components and service points are easily accessible. No oil changes needed
