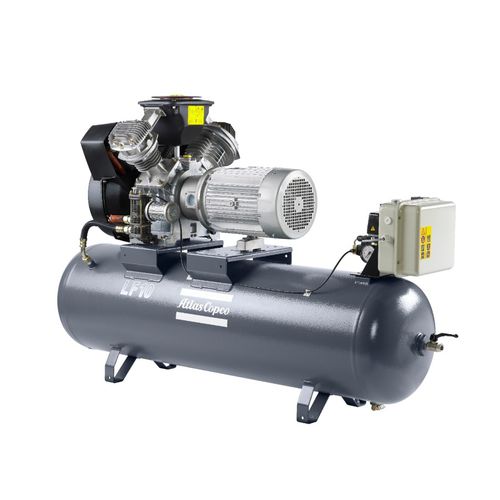

Piston compressor LF series
airelectricfixed

Piston compressor - LF series - Atlas Copco Construction Tools - air / electric / fixed
Piston compressor - LF series - Atlas Copco Construction Tools - air / electric / fixed
Piston compressor - LF series - Atlas Copco Construction Tools - air / electric / fixed - image - 2
Piston compressor - LF series - Atlas Copco Construction Tools - air / electric / fixed - image - 3
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electric
Portability
fixed
Lubrication
oil-free
Application domain
industrial
Applications
long product
Other characteristics
compact, with tank, single-stage, rugged
Pressure

10 bar
(145.04 psi)

Flow

Max.: 55.8 m³/h
(1,970.56 ft³/h)

Min.: 11.16 m³/h
(394.11 ft³/h)

Power

Max.: 7.5 kW
(10.2 hp)

Min.: 1.5 kW
(2.04 hp)

Noise level

82 dB, 83 dB, 84 dB, 86 dB

Description

Atlas Copco’s LF oil-free aluminum piston air compressors are reliable and require low operational costs. The LF compressors are 100% oil-free and deliver the lowest operating temperatures in the industry while offering high-quality air. A compact solution The compressor is directly coupled with the motor, which is designed with lightweight materials like aluminium and provides excellent cooling characteristics. Saves floor space Ideal when you face limited space requirements. The oil-free option designed to provide quality air When you need absolutely clean air, “technically oil-free” won’t do. Oil-injected compression, even filtered, cannot guarantee that all oil vapors, aerosols and other contaminants are removed from the air. Atlas Copco pioneered the oil-free air technology that removes any risk of contamination by oil. Avoid contamination costs Contamination in your air supply can cause a decline in performance, an increase in maintenance costs and productivity loss. Choose a cost effective compressor Atlas Copco’s innovative oil-free aluminum LF compressor is designed to provide the best possible quality air cost-effectively and satisfies conditions where oil cannot be tolerated. 100% oil-free air LF industrial oil-free aluminum piston compressors provide 100% pure, clean air that poses zero risks of contamination, damage or unsafe products and losses from operational downtime. Certified LF compressors are ISO 8573-1 CLASS 0 (2010) certified. Technical benefits High reliability Our LF compressors offer improved performance and extended product lifetime thanks to a unique,
