Vane air motor LZL-L series
compact

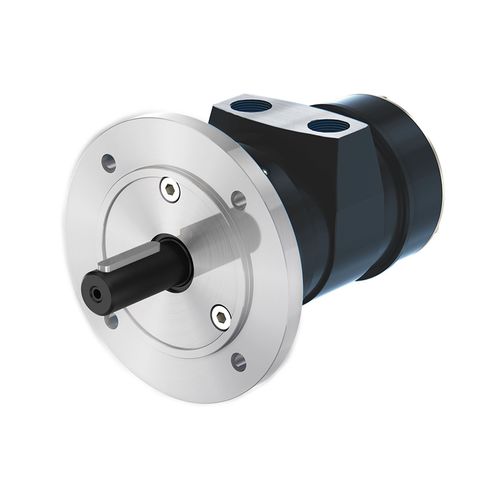

Vane air motor - LZL-L series - Atlas Copco Tools - compact

Vane air motor - LZL-L series - Atlas Copco Tools - compact - image - 2

Vane air motor - LZL-L series - Atlas Copco Tools - compact - image - 3

Add to favorites

Compare this product

Go to the Atlas Copco Tools website for more information

Characteristics

Technology.

vane

Other characteristics

compact

Torque

Max.: 14.7 Nm
(10.84 ft.lb)

Min.: 1.3 Nm
(0.96 ft.lb)

Rotational speed

Max.: 5,300 rpm
(33,300.88 rad.min-1)

Min.: 2,500 rpm
(15,707.96 rad.min-1)

Power

Max.: 5.2 kW
(7.07 hp)

Min.: 0.41 kW
(0.56 hp)

Description

Designed to provide outstanding starting and low speed performance Atlas Copco LZL vane motors use six vanes and an optimum cylinder sealing for a rugged, compact design that offers a long service life. Certain models are available in standard and stainless-steel versions. The motors have strong starting torque and can be run non-reversible or reversible with lube free vanes. Features IEC and NEMA mounting options Lubrication free Reversible Stainless steel available Good low speed characteristics ATEX certified Benefits Reliable starting Strong bearings Long vane life High radial and axial load capacity
