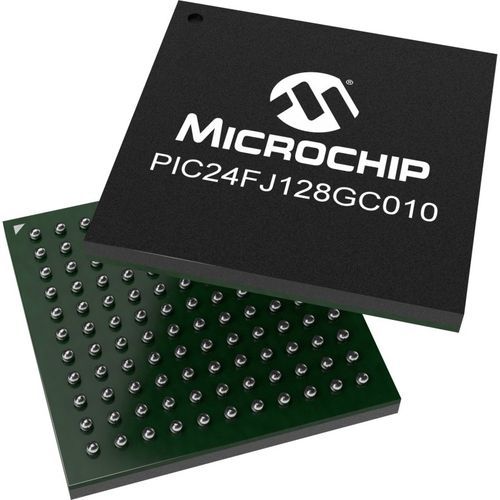

16-bit microcontroller PIC24FJ128GC010

low-poweranalogADC

PIC24F 16-bit Flash Microcontroller with low noise, high throughput, integrated Intelligent Analog ideal for portable & industrial applications. Segmented LCD, USB, and eXtreme Low Power consumption enable small footprint and long battery life. Product Features Integrated Analog Features 16-bit Sigma-Delta ADC (2 diff. ch) and 12-bit 10MSPS Pipeline ADC (50 ch) 2x10-bit 1MSPS DAC 2 Operational Amplifiers 3 Comparators 3 Voltage References Charge Time Measurement Unit (CTMU) eXtreme Low Power features VBAT allows for lowest power consumption on backup battery (with or without RTCC) 18 nA Deep Sleep mode 350 nA RTCC in Vbat mode 380 nA Low Voltage Sleep mode (RAM retention) 400 nA Real Time Clock & Calendar operation in Sleep modes 240 nA Watch Dog Timer operation in Deep Sleep modes 180 µA/MHz Run mode Power Modes: Run, Doze, Idle, Sleep, Low Voltage Sleep, Deep Sleep, Vbat Multiple, flexible clock modes for optimum performance and power management Deep Sleep Wake Sources: DSBOR, DSWDT, INT0 and RTCC CPU Up to 16 MIPS performance Single Cycle Instruction Execution 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider C Compiler Optimized Instruction Set Architecture 6 Channel DMA
