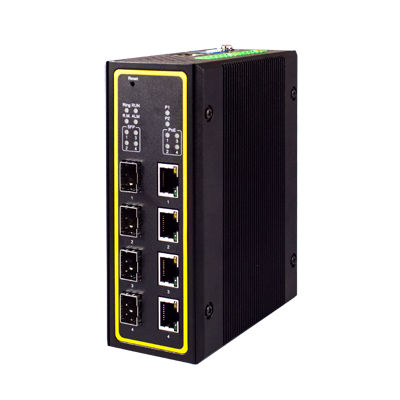

Managed switch EHG7608 Series

8 portsgigabitDIN rail

8-Port Industrial Layer-3 Managed Gigabit PoE Switch, Profinet certified, DIN-Rail Mount • - Up to 8 x 10/100/1000 BASE-T(X) RJ45 ports or 1000 BASE-X SFP slots. • - Up to 8 x 802.3af/ 802.3at Power over Ethernet ports, with maximum 30W PoE power per port and maximum 240 W device power budget. • - Powerful Layer-3 Switching, supporting IPv4 Static, RIPv1/v2 and OSPFv2 • - Layer-2 Redundancy, with ERPS, RSTP, STP, MRP (Manager/ Client) and more. • - Profinet CC-B conformance • - IEEE 1588v2 Precision Time Protocol Hw-Based End-to-End Transparent clock • - EN50155 / EN50121-4 certified for Railway applications • - CE/FCC/UL and NEMA TS-2 Certified for Traffic Control Applications • - Works from -20°C~70°C, in 4000m elevation The EHG7608 Series is an Industrial Grade Layer-3 Managed Gigabit Ethernet PoE Switch. Designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment, EHG7608 Series equips two terminal blocks to provide dual redundant power inputs with Reverse Polarity Protection and allows field engineers to build up a stand-alone fault alarm system. EHG76XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications. Within its compact DIN-Rail housing design, the EHG7608 series allows you to choose between different port combinations: 10/100/1000 BASE-T(X) RJ45 port, 1000 BASE-X SFP port and IEEE 802.3af/at complaint PoE RJ45. EHG7608 provide, in its 8-PoE-Port Version, up to 240W power budget. Layer-3 Features support IPv4, RIP v1/v2, OSPF v1/v2 and many more.
