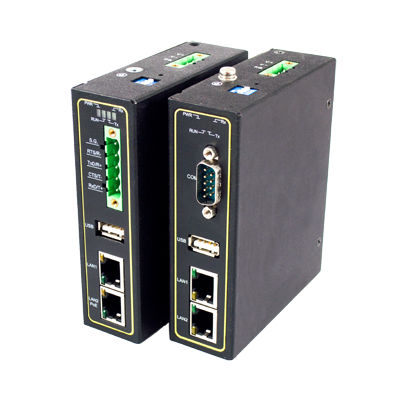

Industrial gateway PG5916 Series

EthernetModbusRS232

16-Port RS232/485/422 with RJ45 and 2-Port Fast-Ethernet, DNP3, Modbus, IEC 60870-5-101/103/104, IEC 61850, Smart Grid Protocol Gateway • - Dual 10/100Mbps Ethernet ports, Embedded PPTP, IPsec or OpenVPN for enhanced security • - Remotely monitor, manage, and control industrial field devices • - Relay out indicator for Network link-status • - LCM display with 4-key touch pad for configuration • - Same hardware platform for different protocol conversion (Modbus TCP/ RTU/ASCII, DNP3.0 TCP or serial, IEC 60870-5-101, IEC 60870-5-103, IEC 60870-5-104, IEC 61850) • - User friendly configuration with a Java-Based Windows utility • - Integrated RSTP redundancy Product Description The PG5916 Series is a highly reliable and fault tolerant Industrial Protocol Gateway. Its powerful architecture provides seamless conversion between the different protocols Ethernet or Serial based. The serial devices communicating on different protocols could be integrated into the system and extend its reach over the gateway’s redundant Ethernet. This device is designed to work in most demanding industries such as power substations, power generation, oil and gas, farming and manufacturing. The configuration carried out through a use friendly, Java- Based Windows Utility called eNode Designer. It allows configuring target platforms, set device properties and protocol data point mapping. To do so, a project file representing the system should be created. This will include devices and the protocol applications running on them.
